To install iSpring RCC7AK tight cabinet garbage disposal setups successfully, you need to plan three things before you ever pick up a wrench: where the filter manifold will hang, where the 3.2-gallon storage tank will sit, and how the drain saddle will clear the disposal body. The system fits in cabinets as narrow as 16 inches wide if you mount the filter bracket on the side wall opposite the disposal, lay the tank on its side, and route the drain saddle above the disposal's dishwasher inlet rather than below it. Below is a step-by-step walkthrough for installing the iSpring RCC7AK in a cramped under-sink space that already has a garbage disposal eating half the cabinet.
Why the iSpring RCC7AK Is a Smart Pick for Cramped Cabinets
The RCC7AK is a 6-stage alkaline reverse osmosis system, but what matters for a tight build is its modular layout. The four vertical filter housings hang from a single bracket, the membrane housing tucks behind the prefilters, and the alkaline post-filter mounts inline near the faucet. Unlike systems with rigid pre-built frames, the RCC7AK lets you separate components: tank in one spot, manifold in another, post-filter on the faucet line. That separation is exactly what makes it possible to install iSpring RCC7AK tight cabinet garbage disposal arrangements without sawing the disposal out.
RCC7AK Variants: Which Fits a Disposal Cabinet Best?
| Model | Stages | Footprint Width | Tank Size | Best for Tight + Disposal? |
|---|---|---|---|---|
| iSpring RCC7AK | 6 (alkaline) | ~16 in bracket | 3.2 gal | Yes — most flexible layout |
| iSpring RCC7AK-BLK | 6 (alkaline) | ~16 in bracket | 3.2 gal | Yes — identical to RCC7AK |
| iSpring RCC7AK-UV | 7 (alkaline + UV) | ~16 in + UV chamber | 3.2 gal | Only if you need UV |
| iSpring RCC7 | 5 (no alkaline) | ~15 in bracket | 3.2 gal | Smallest filter stack option |
| iSpring RCC7P-AK | 6 + booster pump | ~16 in + pump | 3.2 gal | For low-pressure homes only |
iSpring RCC7AK 6-Stage Reverse Osmosis System
This is the system the whole article is about. The standard RCC7AK includes the pH-balancing alkaline remineralization cartridge, NSF/ANSI 58 certification, and a brushed-nickel top-mounted faucet that simplifies countertop drilling. For a tight cabinet, the key spec is the bracket: dimensions are roughly 16 inches wide by 17.5 inches tall by 6 inches deep, so it can hang sideways on a cabinet wall if floor space is gone. The included 3.2-gallon tank is the bigger volumetric challenge — plan for that more than the filter stack. iSpring RCC7AK 6-Stage Reverse Osmosis System.
iSpring RCC7AK-BLK with Black Faucet
Mechanically identical to the standard RCC7AK, the BLK variant ships with a matte-black RO faucet for kitchens with darker fixtures. Same footprint, same bracket, same tank dimensions — so every installation tip in this guide applies. If your countertop already has black or oil-rubbed bronze hardware, this version saves you from buying a separate faucet later. iSpring RCC7AK-BLK.
iSpring RCC7AK-UV with UV Sterilizer
The UV variant adds a seventh stage — an ultraviolet lamp that mounts between the tank and the faucet. The catch for tight cabinets: the UV chamber adds another 14-inch component plus a power adapter, and it needs to be near an outlet. If your cabinet already feels crowded with the standard six stages, skip the UV version unless your water source is well water or you have a long pipe run from a UV-treated municipal source. iSpring RCC7AK-UV.
Step-by-Step: Install iSpring RCC7AK Tight Cabinet Garbage Disposal Layout
Step 1 — Measure and Map the Cabinet
Open the cabinet, clear everything out, and take three measurements: clear width to the left and right of the disposal, vertical clearance from floor to drainpipe, and depth from the back wall to the doors. The RCC7AK bracket needs ~16 inches of continuous wall, but it does not need to be on the back wall — the side wall opposite the disposal is usually the better choice because the disposal hogs the rear-center area. Mark the bracket position with painter's tape before drilling.
Step 2 — Decide Where the Tank Lives
The 3.2-gallon tank is the single biggest space hog in any RCC7AK install. iSpring confirms the tank can be laid horizontally on its side, which is a game-changer in disposal cabinets. Lay it on the cabinet floor in front of the P-trap, or in a neighboring cabinet with a tubing run-through. Use a 1/4-inch hole through the cabinet divider, push the tank's blue tube through, and reconnect on the other side. Many installers run the tank into the cabinet under the dishwasher when the sink cabinet is genuinely full.
Step 3 — Tap the Cold Water Line
The included feed water adapter goes on the cold-water shut-off valve under the sink. With a disposal in the cabinet, the cold supply line is usually on the right (in US kitchens). Shut the valve, disconnect the faucet supply line, install the 3/8-inch tee adapter from iSpring's kit, then reconnect the faucet line on top. This adds about two inches of vertical height under the valve — confirm the dishwasher hose isn't being pinched by the disposal in this new geometry.
Step 4 — Mount the Drain Saddle Around the Disposal
This is the trickiest part of any disposal-cabinet RO install. The drain saddle clamps onto the kitchen drainpipe and accepts the RO's brine reject line. Never mount the saddle on the disposal's outlet pipe (the rubber gasket can't seal against ground food slurry) and never below the disposal's discharge — backflow risk. The correct location is on the vertical tailpiece between the sink basket and the disposal inlet, or on the horizontal drain arm after the disposal's P-trap. Drill the 1/4-inch hole, install the rubber gasket, tighten both U-bolts evenly, and confirm the tubing inlet points downward.
Step 5 — Drill the Faucet Hole
If your sink has a soap dispenser hole or an unused sprayer hole, use it. If not, you'll drill through stainless (3/8-inch bi-metal hole saw) or porcelain/granite (1/2-inch diamond bit, wet). The iSpring patented top-mounted faucet design means most of the assembly happens above the countertop — a real advantage when the cabinet is too tight to reach a traditional bottom-mount nut. Position the faucet on the back edge so the spout swings over the basin.
Step 6 — Connect Tubing in the Correct Order
iSpring color-codes the tubing: red for feed water, yellow to/from the tank, blue to the faucet, black for drain. The push-to-connect fittings only need the tube cut square (use the included cutter, not scissors) and pushed in firmly until it bottoms out. In a tight cabinet, route tubing along the side walls with adhesive clips rather than letting it loop across the disposal — vibration from the disposal will eventually loosen unsecured tubing.
Step 7 — Flush and Test for 24 Hours
Open the feed valve slowly, then the tank valve. Let the system fill for two hours, then drain the first tank completely through the faucet — this flushes carbon dust and membrane preservatives. Refill and drain a second time. Then leave the system pressurized for 24 hours with shut-off valves on the cold supply closed temporarily, and check every fitting for drips before declaring the install complete.
Alternatives if the RCC7AK Won't Fit
iSpring RCC7 — 5-Stage Without Alkaline
If the alkaline post-filter is the cartridge you can't squeeze in, the RCC7 is the same system minus that one stage. You give up the pH boost and remineralization but recover roughly 2.5 inches of vertical space. NSF certified, 75 GPD, same brushed-nickel top-mount faucet. iSpring RCC7, NSF Certified, High Capacity Under Sink 5-Stage Reverse.
iSpring RCC7P-AK — When Low Pressure Is the Problem
If your home runs below 45 PSI (common in apartments and older homes), the standard RCC7AK will produce water painfully slowly. The RCC7P-AK adds a booster pump that requires an electrical outlet inside the cabinet but bumps production rate significantly. The pump adds ~3 inches of width, so confirm the bracket fits before ordering. iSpring RCC7P-AK.
Waterdrop G3P600 — Tankless Alternative
If the cabinet truly cannot accept a 3.2-gallon tank in any orientation, a tankless system is the workaround. The Waterdrop G3P600 mounts on the back wall, eliminates the storage tank entirely, and produces water on-demand at 600 GPD. It needs a power outlet and is more expensive, but the floor space recovery is dramatic — often the only path forward in galley kitchens with full-depth disposals. Waterdrop G3P600 Reverse Osmosis System.
Filter Replacement Stock
iSpring F9K Replacement Filter Set
The RCC7AK's pre-filters need swapping every 6–12 months and the alkaline post-filter every 24 months. The F9K is the manufacturer's one-year set covering all non-membrane cartridges for RCC7AK and RCC7AK-UV. Keep one on hand from day one of your install so you're not scrambling when TDS readings creep up. iSpring F9K NSF Certified 1-Year Reverse Osmosis Water Filter.

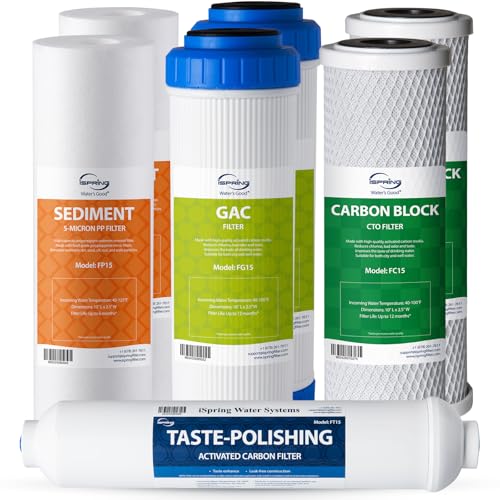

iSpring F7-GAC Standard 7-Pack
If you ever switch to the non-alkaline RCC7, the F7-GAC is the matching replacement bundle for a standard 5-stage. NSF certified, fits any standard 10-inch reverse osmosis housing. iSpring F7-GAC NSF Certified 1-Year Replacement Filter Cartridge Pack.
Frequently Asked Questions
Can I install the iSpring RCC7AK if my cabinet only has 14 inches of free width?
Not directly — the bracket needs ~16 inches. Your options are remote-mounting the tank in an adjacent cabinet (most common workaround), removing a non-load-bearing cabinet divider, or switching to a tankless system like the Waterdrop G3P600. Do not try to compress the filter housings closer together; cartridge changes will become impossible.
Will a garbage disposal damage the RO drain line over time?
No, as long as the drain saddle is mounted above the disposal's discharge point on the tailpiece, not below. The reject brine never touches the disposal slurry, and the disposal's vibration does not transmit meaningfully to the RO tubing if you use adhesive clips. The wrong placement — below the disposal — risks backflow contamination of the reject line and clogs.
Do I need to remove the garbage disposal to install an RO system?
Almost never. The RCC7AK is specifically designed to coexist with disposals because its modular tank and faucet-side post-filter let you split components around the disposal body. The only times disposal removal becomes necessary are when the cabinet is under 14 inches wide and you also lack an adjacent cabinet for the tank.
How do I tap into a kitchen drain that uses an air gap dishwasher hose?
Mount the drain saddle on the vertical tailpiece between the sink basket strainer and the disposal inlet — that section is upstream of both the disposal and the dishwasher tie-in, so flow direction works correctly. Avoid mounting on the horizontal section unless you can guarantee it's after the disposal's P-trap.
How long does an iSpring RCC7AK install take in a tight cabinet?
Plan for 3–4 hours your first time, mostly because of measuring, drilling the faucet hole, and routing tubing carefully around the disposal. Subsequent reinstalls (after a kitchen remodel, for example) take under 90 minutes. The faucet hole drilling is the slowest single step on granite or quartz countertops.
What's the difference between installing the RCC7AK vs the RCC7AK-BLK in a tight cabinet?
None mechanically — only the faucet finish differs. Bracket, tank, tubing, and drain saddle are identical. Pick based on countertop hardware finish, not cabinet constraints.
Should I use a remote tank for a disposal cabinet install?
If your cabinet is under 18 inches wide and you have an adjacent cabinet on the same wall, yes. Drill a 1/4-inch tubing pass-through, place the tank on its side or upright in the adjacent space, and connect with the included yellow tubing. Production rate and pressure are unaffected by tubing runs under 10 feet.
