If you need to replace Express Water RO5DX membrane high TDS readings are forcing the issue, the fix is straightforward: after about three years of service, the thin-film composite membrane has reached the end of its rejection life and needs swapping. Expect to shut off the feed water, depressurize the tank, unscrew the horizontal membrane housing on the right side of the manifold, pull the old element out with pliers, and seat a new 50 GPD TFC membrane with the O-rings facing the inlet. Flush for 20 minutes, refill the tank twice, and TDS should drop back below 20 ppm.
Why Your RO5DX TDS Climbs After Three Years
The Express Water RO5DX ships with a 50 GPD thin-film composite (TFC) membrane rated for 24-36 months of typical residential use. After three years, two things are almost always happening together: the membrane polymer has accumulated mineral fouling that prevents tight rejection, and the post-carbon polishing filter (stage 5) has saturated and is now leaking dissolved solids back into your finished water. A TDS pen reading above 40-50 ppm on city water, or above 80 ppm on softened well water, is the classic signal that you need to replace Express Water RO5DX membrane high TDS performance demands. Before you order parts, verify three numbers: incoming TDS (tap), post-membrane TDS (the line going to the tank), and finished TDS (at the faucet). If the post-membrane reading is more than 10% of the feed reading, the membrane is the culprit. If the post-membrane is fine but the faucet number is high, you may only need a post-carbon swap.
RO5DX Repair vs. Upgrade: Comparison Table
| Option | Cost Tier | GPD | Pure-to-Drain | Best For |
|---|---|---|---|---|
| RO5DX OEM 3-Year Kit | Low | 50 | ~1:4 | Keeping the system you know |
| Express Water RO5DX (replacement unit) | Low-Mid | 50 | ~1:4 | Housing cracks or manifold failure |
| APEC ROES-50 | Mid | 50 | ~1:4 | Slightly better build, similar footprint |
| iSpring RCC7 | Mid | 75 | ~1:3 | Faster fill, top-mount faucet |
| Waterdrop G3P800 | High | 800 | 3:1 | Tankless, fastest flow, smart faucet |
Tools and Replacement Parts You'll Need
For a clean three-year service, gather a filter housing wrench (the RO5DX housings are blue and use a standard 10-inch sump wrench), a TDS meter, food-grade silicone grease for the O-rings, a small bucket, paper towels, and an empty 5-gallon bucket to catch the flush water. You will also want fresh Teflon tape if you plan to remove any tubing fittings. For the actual filters, Express Water sells a three-year bundle that covers two sediment, two GAC, two carbon block, one PAC post-filter, and the 50 GPD RO membrane.

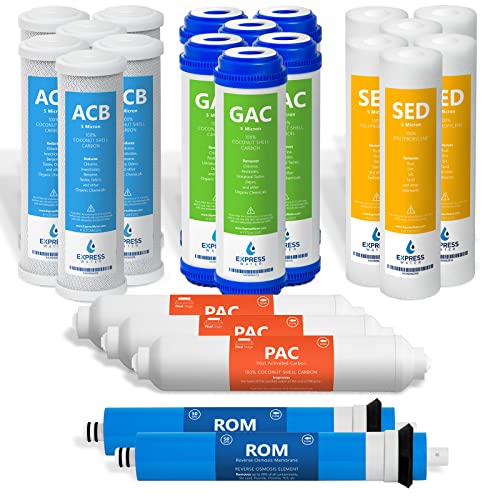

Express Water 3 Year Replacement Filter Set (23 Filters with 50 GPD Membrane)
This is the OEM bundle and the single easiest way to get back to factory rejection. It includes the matching 50 GPD TFC membrane sized for the RO5DX horizontal housing, plus enough pre and post cartridges to carry the system through 2029. Diameters and lengths are guaranteed to fit without shimming or O-ring adapter swaps. Express Water.

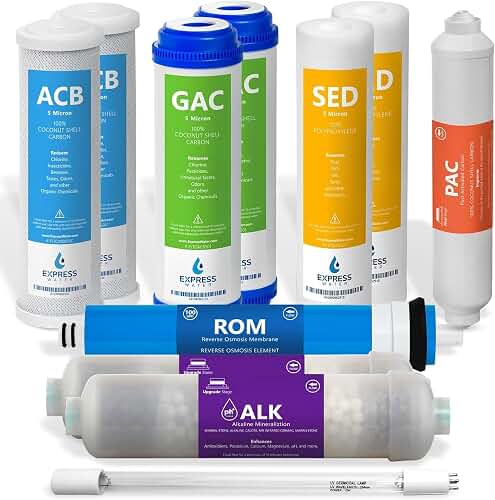

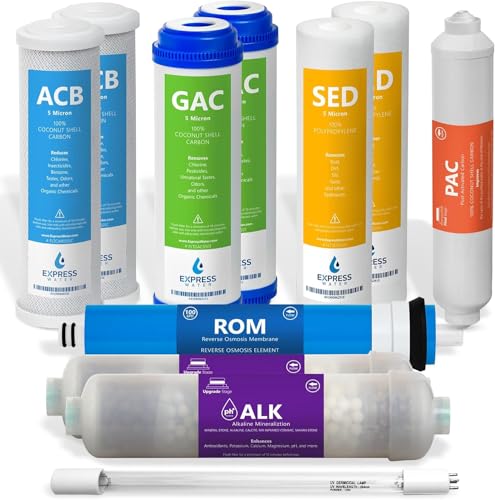

Express Water 1 Year Filter Set (11 Filters with 100 GPD Membrane)
If you want to upgrade output while you are in there, this kit includes a 100 GPD membrane that drops into the same housing and roughly doubles your fill rate. The tradeoff: a 100 GPD element rejects slightly less than the 50 GPD on the same low-pressure city feed, so if your incoming TDS is already above 400 ppm, stay with the 50 GPD. Express Water.
Step-by-Step: Replacing the RO5DX Membrane
Start by turning the red feed-water valve at the cold-water saddle clockwise to off, then open the RO faucet and let it run dry. Close the small ball valve on top of the storage tank. Place a towel under the membrane housing because residual water will drip when you crack the cap. Using channel-lock pliers or your hand, unscrew the cap on the horizontal blue housing that sits to the right of the three vertical pre-filter sumps. The old membrane will be wedged in tightly after three years of pressurization, so grip the protruding plastic stub with needle-nose pliers and pull straight out, twisting gently. Do not yank sideways or you can score the housing wall.
Inspect the new membrane: the brine-seal end (with two black O-rings) goes into the housing first, with the small plastic nipple facing out toward the cap. Lightly lubricate both O-rings with silicone grease, push the membrane fully home until you feel it seat against the back of the housing, then thread the cap back on hand-tight plus a quarter turn with the wrench. Open the tank valve, then the feed-water valve. Watch for leaks for 60 seconds.
Flushing the New Membrane Correctly
A new TFC membrane ships with food-grade preservatives that must be flushed before the water is drinkable. Open the RO faucet and let it run for the first 10-15 minutes of production. The flow will be a trickle, which is normal. Close the faucet, let the tank fill for two to four hours, then drain the entire tank and refill again. Drain the second tank, refill, and on the third fill the water is safe to drink. Take a TDS reading at this point: a healthy RO5DX on 200 ppm feed water should be reading under 15 ppm. If you are still above 30 ppm at the faucet after three full tank flushes, the post-carbon stage (the inline T33 polish filter) is the next thing to swap.
If You'd Rather Replace the Whole System
Three years is not the end of the RO5DX's life - the housings, manifold, and faucet typically last 8-10 years - but if you have been fighting low tank pressure, repeated leaks at the tubing collets, or you simply want a tankless modern system, there are sensible step-ups.
APEC ROES-50: Like-for-Like with Tighter Tolerances
The APEC ROES-50 is the closest premium analog to the RO5DX. Same 50 GPD output, same general layout, but with thicker cartridges and a longer-life membrane spec. If your RO5DX is leaking and you want a near-identical replacement without rethinking your under-sink layout, this is the move. APEC Water ROES-50 5-Stage Under Sink Reverse Osmosis System. For more depth, our APEC ROES-50 review walks through the install and rejection numbers.
iSpring RCC7: 75 GPD With a Patented Top-Mount Faucet
The RCC7 is the most popular mid-tier under-sink RO unit in 2026 for a reason - 50% faster production than the RO5DX, simpler top-mount faucet install, and a 5-stage filter chain that pairs well with low-pressure city water. iSpring RCC7, NSF Certified, High Capacity Under Sink 5-Stage Reverse, or read our full RCC7 review.
Waterdrop G3P800: Tankless, 800 GPD, Smart Faucet
If you are tired of waiting for the tank to refill and want a unit that delivers continuous near-tap-speed flow with TDS readout on the faucet itself, the G3P800 is the leading tankless choice. It eliminates the storage tank entirely (frees about 30% of your cabinet) and reaches a 3:1 pure-to-drain ratio - far better than the RO5DX's wasteful 1:4. Waterdrop G3P800 Reverse Osmosis System.
Express Water RO5DX: If You Just Want the Same Unit Again
Sometimes the right answer is the simplest: order another RO5DX, swap the housings, and reuse your existing faucet and saddle valve. Express Water RO5DX 5-Stage Under Sink Reverse Osmosis Water Filter, and compare against alternatives in our Express Water RO5DX review and our RO5DX vs. PureDrop RTW5 comparison.
What Your Post-Replacement TDS Should Read
After a successful membrane swap, your finished-water TDS should land at 4-8% of your feed-water TDS. On 250 ppm city water, expect 10-20 ppm out of the faucet. On 450 ppm softened well water, expect 18-35 ppm. If you live in a hard-water region and want to replace Express Water RO5DX membrane high TDS permanently, install a pre-softener or upstream sediment filter; calcium and silica are the two compounds that age TFC membranes fastest. Logging your TDS once a month going forward will give you a 12-month head start on the next membrane replacement instead of waiting for taste to alert you.
Maintenance That Extends the Next Membrane to Four or Five Years
The biggest predictor of how long the next membrane lasts is how diligently you change the pre-filters. The sediment and two carbon block prefilters on the RO5DX should be replaced every 6-12 months - and on a strict 6-month schedule if you have chlorinated city water. Chlorine destroys TFC polyamide membranes in weeks if it gets past a saturated carbon stage. Our RO maintenance guide covers the full annual checklist, and the system upkeep walkthrough includes the tank sanitization step most owners skip.
Frequently Asked Questions
How do I know if it's the membrane or the post-filter causing high TDS on my RO5DX?
Take three TDS readings with a digital pen: tap water, the line between the membrane and the tank (disconnect the quick-connect briefly), and the faucet. If the post-membrane reading is above 10% of the tap reading, the membrane is exhausted. If post-membrane is fine but the faucet reads high, the post-carbon T33 polish filter is the issue and a $15 swap fixes it.
What size Express Water RO5DX membrane do I need to order?
The factory membrane is a standard 1812 form-factor 50 GPD TFC element. Any 1812-50 RO membrane will fit, but the Express Water OEM unit is matched to the housing tolerances and avoids brine-seal leaks. You can upgrade to a 1812-100 GPD element in the same housing if your feed pressure is at least 50 psi.
How long should the RO5DX membrane last on city water versus well water?
On chlorinated city water with prefilters changed every 6 months, expect 36-48 months. On softened well water, expect 30-36 months. On unsoftened hard well water with TDS above 500 ppm, you may only get 18-24 months before TDS rejection drops below acceptable levels.
Can I replace the RO5DX membrane without shutting off the house water?
You only need to shut off the small red feed-water valve at the saddle clamp under the sink, not the whole-house supply. Close the tank ball valve too, then open the RO faucet to relieve pressure before you crack the housing. The rest of the kitchen plumbing stays live.
Should I sanitize the RO5DX system when I replace the membrane?
Yes - every three years is the perfect time. With the housings open and prefilters removed, drop a tablespoon of unscented bleach into the first stage sump, reassemble dry housings, run the system for 15 minutes without the membrane installed, drain the tank twice, then install the new membrane and post-filter and flush as normal.
Why is my RO5DX faucet producing slowly even after a new membrane?
Three causes, in order of likelihood: tank air pressure has dropped (re-pressurize to 7-8 psi empty with a bike pump on the Schrader valve), incoming line pressure is below 40 psi (add a booster pump), or the auto-shutoff valve has failed (a $20 part). A fresh 50 GPD membrane on 60 psi feed should fill a 3-gallon tank in roughly two hours.
Is it worth upgrading from the RO5DX to a tankless system in 2026?
If your kitchen cabinet is cramped, your household drinks more than 3 gallons of RO water per day, or you are paying for water on a meter, yes. Tankless units like the Waterdrop G3P800 cut waste water by roughly 75% and free up the space the tank occupies. See our best under-sink RO systems for 2026 roundup for the current top tankless picks.
